10ah Lithium ion Batteries 12v Lifepo4 Battery

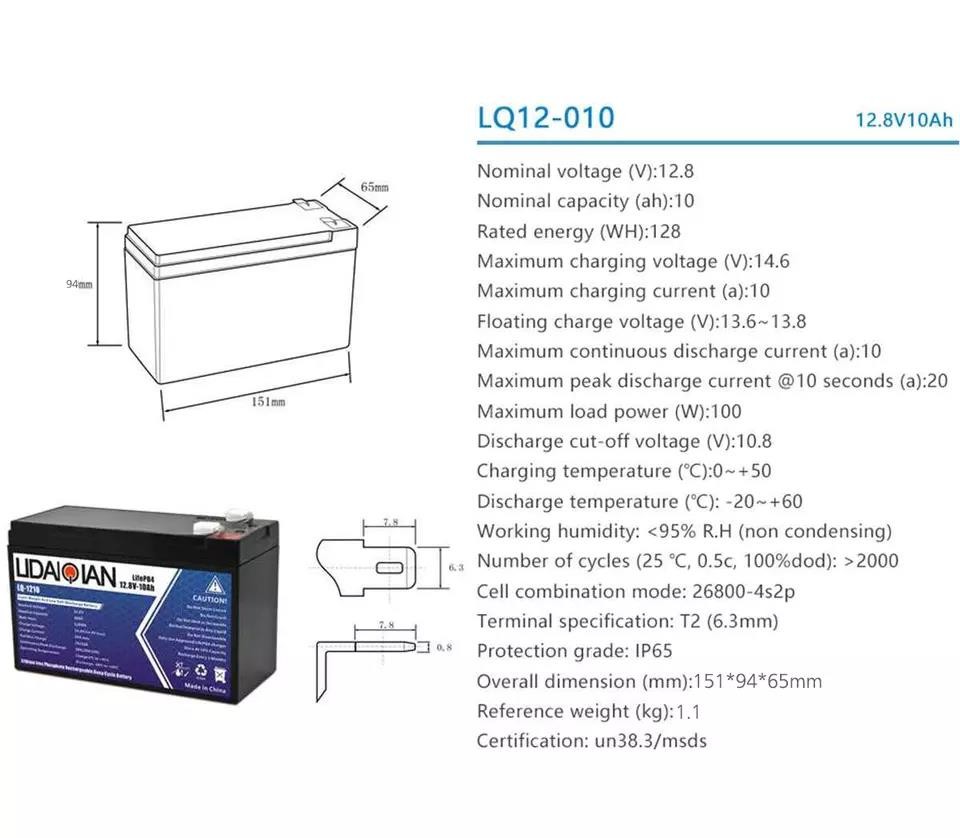

| Model | LQ12-10 |
| Specification | 12.8V10Ah |
| Nominal voltage(V) | 12.8 |
| Nominal capacity(Ah) | 10 |
| Nominal energy (Wh) | 128 |
| Maximum charging voltage(V) | 14.6 |
| Max. charging current(A) | 10 |
| Float voltage(V) | 13.6~13.8 |
| Max Continuous Discharge Current(A) | 10 |
| Maximum peak discharge current @10sec(A) | 20 |
| Max. load power(W) | 100 |
| Discharge cut-off voltage(V) | 10.8 |
| Charging temperature(℃) | 0~+50 |
| Discharge temperature(℃) | -20~+60 |
| Operating humidity: | <95%R.H |
| Operating humidityCycle times(25℃,0.5C,80%DOD) | >2000 |
| Battery combination mode | 26800-4S2P |
| Terminal specification | T2(6.3mm) |
| Protection class | IP65 |
| Dimension(mm) | 151*65*100 |
| Reference weight(kg) | 0.9 |
| Accreditation | UN38.3/MSDS |
This Lithium-Ion Battery has a long lifespan of 6 000 cycles at 80%
depth of discharge at 25°C. In addition, the batteries can support
up to 15 batteries in parallel for expansion. The batteries are set
to sleep mode (off) during transportation and storage to reduce
loss of capacity. has the following remarkable characteristics:
>> Long lifespan of 6000 cycles at 80% DoD at 25’C.
>> Excellent charge and discharge capacity.
>> The Batteries can support up to 15 batteries in parallel
for expansion.
>> The Batteries are set to sleep mode (off) during
transportation and storage to reduce loss of capacity.
>> Lightweight and compact.
>> Easy to install and maintain.
>> Built-in Battery Management System (BMS).
>> Environmentally friendly.
>> sunica provides Lithium-ion batteries with proven Lithium
Iron Phosphate (LifePO4) chemical composition.
>> This product has a 5-year warranty with a 10-year warranty
option
Q. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the
different part numbers. 1~10pcs sample order is available. Low MOQ,
1pc for samplechecking is available.
Q. How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-7 days to arrive.Airline and sea shipping is
also optional.
Q. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly,
We quote according to your requirements or our suggestions.Thirdly
customer confirms the samples and places a deposit for formal
order. Fourthly We arrange the production.
Q. Is it OK to print my logo on the product?
A. Yes. Pleaseinform us formally before our production and confirm
the designfirstly based on our sample.
Q.Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.
Q.How about warranty?
A:5 year warranty.
