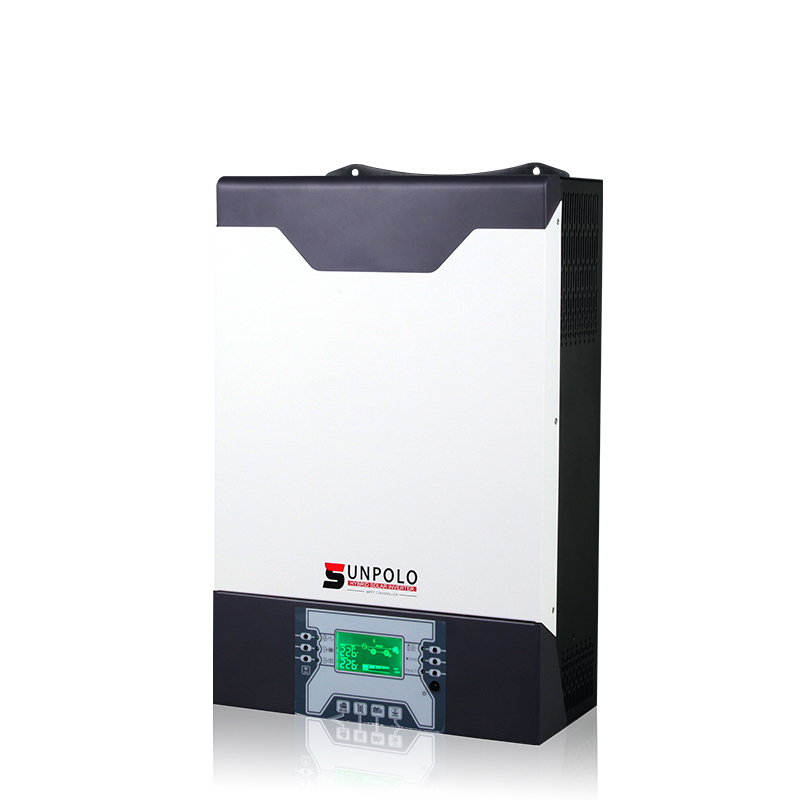

48V Smart Solar Hybrid Inverters 80A Auto Sensing Luminous Solar 5kw

Product Categories

Liren Design (Dongguan) Co., Ltd.

Contact Now

Add to Cart

MODEL	SUNPOLO-3K	SUNPOLO-5K
The rated power	3KW	5KW
INPUT
Voltage	230 VAC
Selectable Voltage	176-280 VAC at 100% load 110-280 VAC at 50% load
RangeFrequnecy Range	50Hz/60Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Model)	230VAC ± 3%
Surge Power	6400VAfor 5 sec	10400VAfor5sec
Efficiency(Peak)	>95% ( Rated R load, battery full charged
Transfer Time	10ms (For Personal Computers), 20ms (For Home Appliances)
Wave form	Pure sine wave
BATTERY
Battery voltage	24VDC	48VDC
Floating Charge Voltage	27VDC	54VDC
Overcharge Protection	32VDC	64VDC
SOLAR CHARGER&AC CHARGER
Solar ChargerType	MPPT
Maximum PV Array Open Circuit Voltage	450VDC
Maximum PV Array Power	4000W	5000W
MPP Range® Operating Voltage	120-430VDC	120-430VDC
Maxmum SolarCharge Current	80A	80A
Maximum AC Charge Current	80A
PHYSICAL
Dimension, DWH(mm)	492303129mm	456303147mm
Net Weight (kgs)	9.5	11.97
Communication Interface	Removable OTG USB/RS232/RS458/BLE/Dry-contact,BMS interface, 9pcs in parallel ( only 5KVA )
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity (Non-condensing)
Operation Temperature	-10°C to 50°C
Storage Temperature	-15°C to 60°C
*Product specifications are subject to change without further notice
